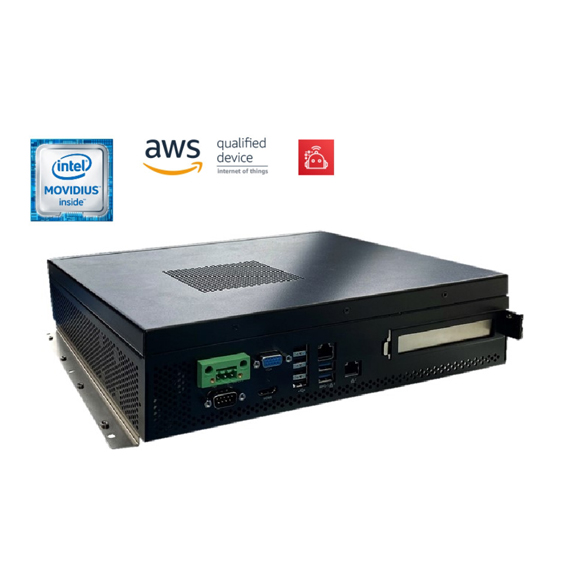

SRB 200

Smart robot gateway, maximum robot connections: 10, AI Booster optional

Tính năng chính

Robot connectivity: YASKAWA, KUKA, ABB, FANUC, TM, UR
R2M communication: Modbus TCP, TCP/IP
R2C communication: OPC UA, MQTT
Support ROS applications
Supports AWS RoboMaker ROS applications
Supports Intel OpenVINO Toolkit (optional)
Supports AI inference with Intel® MovidiusTM X VPUs (optional)

Giá sản phẩm: Liên hệ

NexCOBOT’s SRB (Smart Robot Box) is a series of robot gateways that connects with major industrial robots. Through Modbus, TCP/IP, OPC, and MQTT protocols, users can easily integrate robot information to HMI, SCADA, or the cloud to implement M2M (machine-to-machine)/M2C (machine-to-cloud) communication. Moreover, SRB series leverages Intel’s® MovidiusTM MyriadTM X VPUs to run AI programs. Traditional robots can be fully upgraded with smart AI applications such as vision inspection and predictive maintenance.

Front I/O Interface	1 x Power switch 2 x USB2.0 2 x LAN port
Rear I/O Interface	2 x DB9 for RS232/422/485 1 x HDMI 4 x USB2.0 1 x DB15 for VGA 2 x LAN port (1 x PoE, IEEE 802.3af compliant) 1x 3 pin Terminal block for DC24V in
Display	1 x HDMI display 1 x VGA
Expansion	1 x PCIex16 1 x Mini PCIe
Power	Power input: 24V DC +/-10%
Environment	Board level operation temperature: 0°C to 50°C Storage temperature: -20˚C to 80˚C Relative humidity: - 10% to 90% (operating, non-condensing) - 5% to 90% (non-operating, non-condensing) Vibration protection w/ HDD or SSD condition: - Random: 2Grms @ 5~500 Hz, IEC60068-2-64 - Sinusoidal: 2Grms @ 5~500 Hz, IEC60068-2-6
Certifications	Meet CE / FCC Class A
Physical Characteristics	312.5 X 286.1 X 75.8 mm (without mounting bracket) 354.18 x 286.1 x 83.8 mm (with mounting bracket
Robot Connectivity	Supported Robots: YASKAWA, KUKA, ABB, FANUC, TM, UR Supported Protocols: Modbus TCP, OPC UA, MQTT Supported Functions: Read parameter,*Write command (2020 Q2) Max Number of Connected Robots: 10
AI Inference Engine	Optional AIBooster-L1/L2 (Intel® Movidius™ Myriad™ X MA2485 Accelerator Card)

DATASHEETS

SRB200.201_Datasheet_20200203.pdf

[ SRB200.201_Datasheet_20200203.pdf , 0.7MB , Jan.19.2024 ]
