IPC-7132MB-30B

Cost-effective Wallmount Chassis for ATX/mATX Motherboard and 10-slot Backplane

Tính năng chính

Giá sản phẩm: Liên hệ

Front I/O Interface	USB 2.0: 10 D-sub openings supporting up to 10 COMs with optinal COM cables
Form Factor	ATX
Disk Drive Bay	3.5" Front-Accessible: 1 3.5" Internal: 2

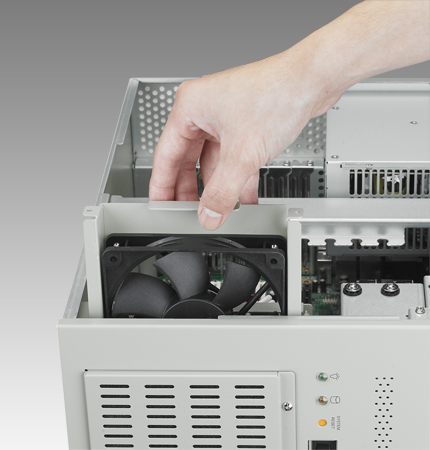

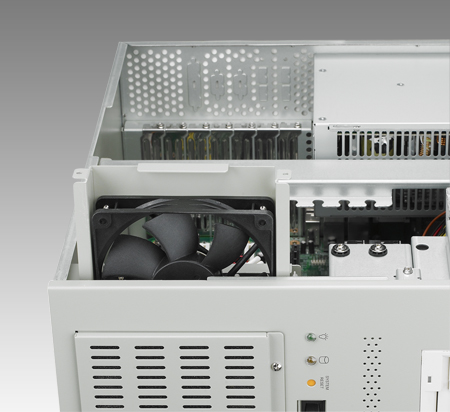

Cooling	System Fan: 1 (12 cm , 82 CFM) Air Filter: Yes
Miscellaneous	LED Indicators Power, HDD Control Power Switch, System reset
Power	Power Supply 300W (Single)
Environment	Operating-Temperature: 0 ~ 45 Non-Operational Temperature: -20 ~ 60° C (-4 ~ 140° F) Operating Shock: 10 G (with 11 ms duration, half sine wave) Operating Humidity: 10 ~ 85% @ 40° C, non-condensing Operating Humidity: 10 ~ 85% @ 40° C, non-condensing Operating Vibration (5 ~ 500 Hz): 1 Grms Non-Operating Vibration (5 ~ 500 Hz): 2 Grms
Physical Characteristics	Weight: 9.96 kg (21.93 lb) Dimensions (W x H x D): 200 x 330 x 430 mm (7.9" x 13" x 16.9")

DATASHEETS

IPC-7132_DS(060120)20200710151249.pdf

[ IPC-7132_DS(060120)20200710151249.pdf , 0.84MB , Jan.25.2024 ]
