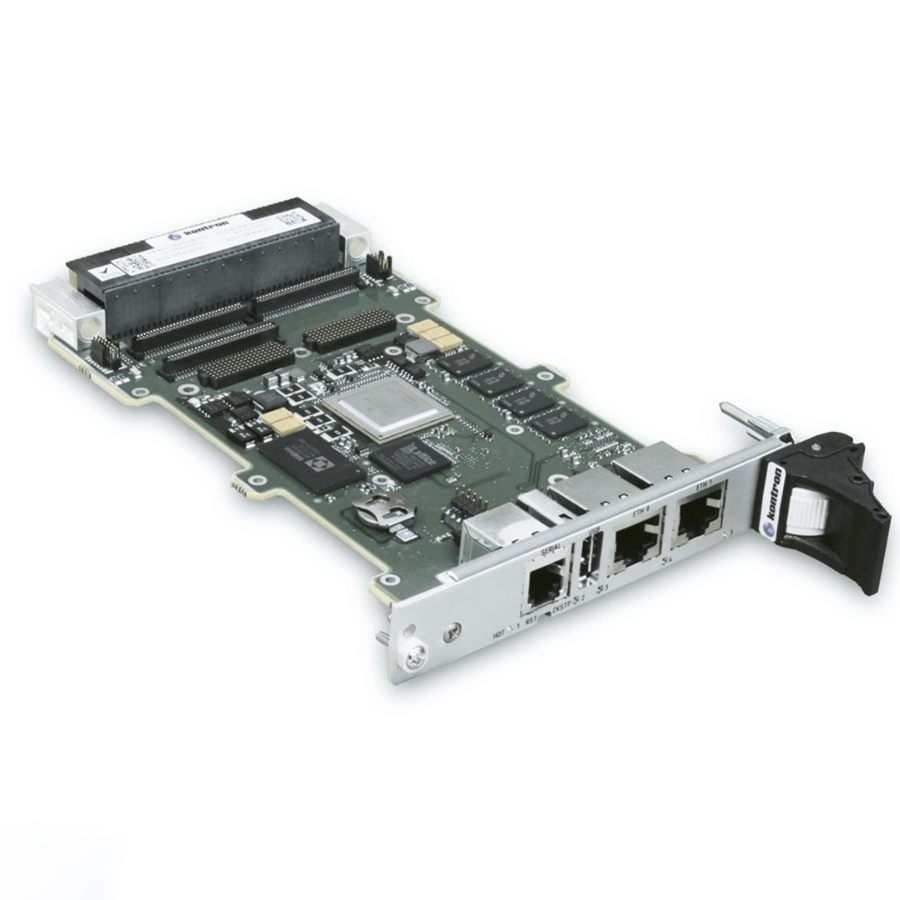

VX3240

3U VPX Freescale Qoriq™ P2041 Single Board Computer

Tính năng chính

1.2 GHz Freescale QorIQ™ P2041, Soldered DDR3 SDRAM
PCIe (4x), SATA, Gigabit Ethernet on the VPX Backplane
Support for PMC or XMC Mezzanines
Standard Air- and Rugged Conduction-Cooled Versions

Giá sản phẩm: Liên hệ

General Purpose 3U VPX PowerPC(tm) Single Board Computer

VX3240 is a low-power 3U VPX SBC featuring a quad-core Freescale P2041 QorIQ™ device with quad PowerPC e500mc cores at 1.2 GHz. VX3240 supports up to 8 GB DDR-3 SDRAM and provides a wide range of I/Os including Gigabit Ethernet, GPIOs, PMC/XMC I/Os, USB, SATA and serial ports. With such a feature set, VX3240 is the ideal general purpose solution for SWaP-C constrained embedded applications. Coupled with Kontron Long Term Supply policy, VX3240 is the perfect migration path to a new 10+ year period of deployments for PowerPC-based applications in the Military, Aerospace and Transportation markets.

Specifications

Processor:

- Freescale QorIQ™ P2041 operating at 1.2 GHz

- 4x e500mc cores based on Power Architecture technology
- 32 KByte L1-I cache and 32 KByte L1-D cache per core
- 128 KByte L2 cache per core
- 1 MByte CoreNet™ platform cache with ECC
- 64-bit DDR3/3L Memory Controller with ECC

Main Memory:

- Up to 8 GByte of DDR3 SDRAM running at 1066 MHz, with ECC, soldered

- 128 MByte FLASH, with recovery image
- One 512 Kbits FRAM
- One 256 Kbits serial EEPROM dedicated to system data
- One 256 Kbits serial EEPROM dedicated to application data
- Up to 32 GByte SATA Nand Flash storage

Controller:

- Board controller for power sequencing, reset handling, monitoring and failure detection.

- Provides confi guration/status registers on Local Bus interface Separated low port

- RTC with optional onboard battery

Front panel

- One USB 2.0 port on 4-pin standard USB connector

- Two 1000BASE-T ports on RJ-45 connectors
- One RJ-12 connector for EIA-232/EIA-485 simplifi ed UART interface (with RTS/CTS)
- Three LEDs reporting the board CPU health status and activity
- Reset push button
