• Processor:

- Intel® Xeon® D-1500 Octa Core™, TDP 35W, 1.6/1.7 GHz (8 execution cores, 16 threads, 12 MB)

- DDR4 dual channel memory with ECC, 2133 Mbits/s over 144 bits, up to 16 Gbytes
- PCIe gen3 x8 ports to VPX and XMC, up to 8 GT/s

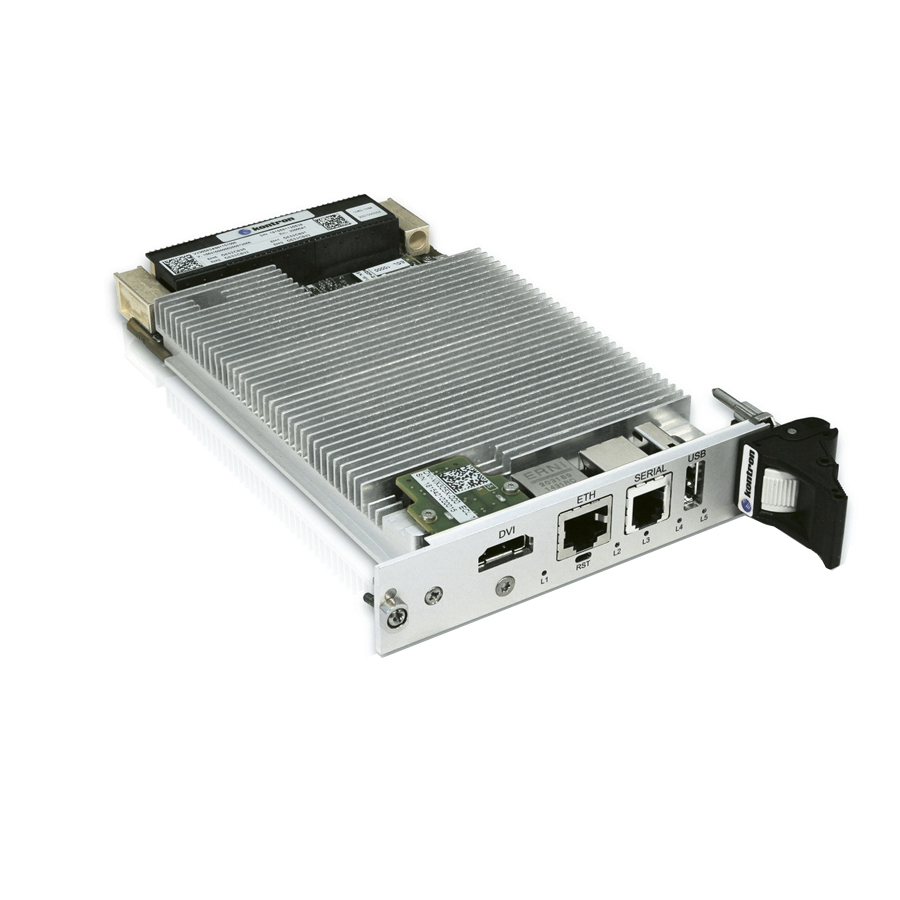

• Form Factor: 3U VPX, 1’’ (5HP)

Slot profile: SLT3-PAY-2F2U-14.2.3, SLT3-PAY-1F1F2U-14.2.4, SLT3-PAY-1F1U-14.2.10

• Main Memory: Up to 32 GB dual channel DDR4 SDRAM running at 2133 MT/s, with ECC, soldered
• Available I/Os: Front Panel

- USB: 1x USB 2.0 port
- GIGABIT ETHERNET: 1x RJ-45 connector: 10/100/1000BASE-T Ethernet Note: This port is configurable from the BIOS to be routed to the VPX rear connector
HDMI (OPTION): HDMI connector as option. This includes a HDMI front-I/O module and a M.2 mezzanine for 2D graphics. Remark: HDMI front I/O and XMC support are exclusive.
- SERIAL: 1x RJ-11 connector: Two EIA-232 interfaces or one EIA-485 interface without hardware flow control
- LEDS: 5 LEDs reporting the board CPU health status and activity
- RESET: Push button

Backplane

PCIe: x8 PCIe 3.0, non-transparent capability, on P1. Configurable as 1 x8, 2 x4, or 4 x2
SATA: 2 SATA 6 Gb/s links on P1, 2 additional SATA 6 Gb/s links on P2
USB: 2 USB 2.0 and 1 USB 3.0 port on P1, 1 additional USB 2.0 link on P2
UART: Two serial lines (Rx, Tx only) on P2, for RS-232 or RS-422/485 dynamically configured
Ethernet: Two 10GBASE-KR or 1000BASE-KX on P1, one 1 1000BASE-T on P1, 2nd 1000BASE-T on P2 (both front/rear switchable, onboard magnetics)
GPIO P1: GPIO1, GPIO2/Maskable reset, OpenVPX GDISCRETE1, VBAT
GPIO P2: SYSCON. 2x multiplexed GPIO3/4 or SFI I2C
Video: DVI port on P2 as option. This includes a M.2 mezzanine for 2D graphics.

• Security: Dual secure elements, TPM and Wibu, which can be enhanced with Kontron SEC-LINE product
• Watchdog: PLD-based, timeout ranging from 2 µs to 510s, IRQ, Reset, dual-stage
• Flash: 2x16 MB FLASH, with recovery image and uEFI BIOS settings
• Power Supply: On P0: VS1=12V and 3.3V_AUX; VS2 not used; VS3=5V not used; -12V_AUX for XMC slot option
• Drives: 60 GB SSD M.2 Option
• Cooling: Air, Extended Temperature Air, and Conduction-cooled options
