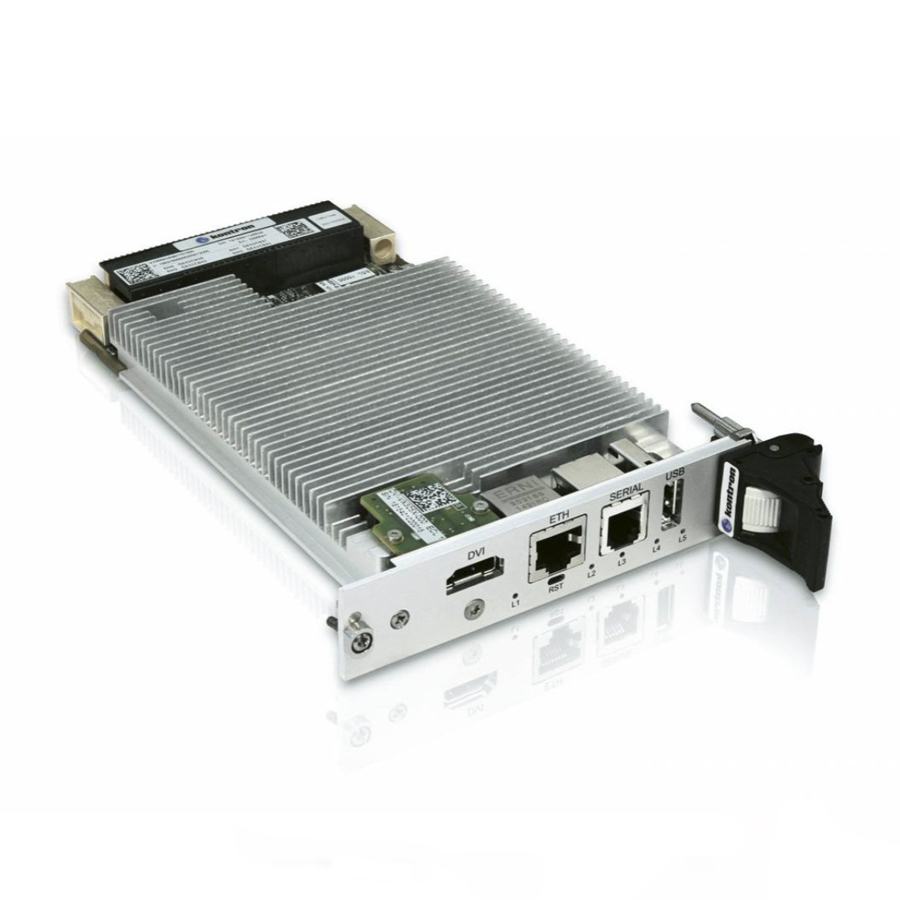

• Processor: Intel® Xeon® D-1500 Dual Core™, tuned to 25 W, 2.2 GHz (4 execution cores, 8 threads, 3 MB)
• Form Factor: 3U VPX, 1’’ (5HP); Slot profile: SLT3-PAY-2F2U-14.2.3, SLT3-PAY-1F1F2U-14.2.4, SLT3-PAY-1F1U-14.2.10
• Main Memory: Up to 32 GB dual channel DDR4 SDRAM running at 2133 MT/s, with ECC, soldered
• Available I/Os:

Front Panel

- USB: 1x USB 2.0 port

- GIGABIT ETHERNET: 1x RJ-45 connector: 10/100/1000BASE-T Ethernet Note: This port is configurable from the BIOS to be routed to the VPX rear connector

- HDMI (OPTION): HDMI connector as option. This includes a HDMI front-I/O module and a M.2 mezzanine for 2D graphics. Remark: HDMI front I/O and XMC support are exclusive.

- SERIAL: 1x RJ-11 connector: Two EIA-232 interfaces or one EIA-485 interface without hardware flow control

- LEDS: 5 LEDs reporting the board CPU health status and activity

- RESET: Push button

Backplane

- PCIe: x8 PCIe 3.0, non-transparent capability, on P1. Configurable as 1 x8, 2 x4, or 4 x2

- SATA: 2 SATA 6 Gb/s links on P1, 2 additional SATA 6 Gb/s links on P2

- USB: 2 USB 2.0 and 1 USB 3.0 port on P1, 1 additional USB 2.0 link on P2

- UART: Two serial lines (Rx, Tx only) on P2, for RS-232 or RS-422/485 dynamically configured

- Ethernet: Two 10GBASE-KR or 1000BASE-KX on P1, one 1 1000BASE-T on P1, 2nd 1000BASE-T on P2 (both front/rear switchable, onboard magnetics)

- GPIO P1: GPIO1, GPIO2/Maskable reset, OpenVPX GDISCRETE1, VBAT

- GPIO P2: SYSCON. 2x multiplexed GPIO3/4 or SFI I2C

- Video: DVI port on P2 as option. This includes a M.2 mezzanine for 2D graphics.

• Security: Dual secure elements, TPM and Wibu, which can be enhanced with Kontron SEC-LINE product
• Watchdog: PLD-based, timeout ranging from 2 µs to 510s, IRQ, Reset, dual-stage
• Flash: 2x16 MB FLASH, with recovery image and uEFI BIOS settings
• Power Supply: On P0: VS1=12V and 3.3V_AUX; VS2 not used; VS3=5V not used; -12V_AUX for XMC slot option
• Drives: 60 GB SSD M.2 Option
• Cooling: Air, Extended Temperature Air, and Conduction-cooled options
