EMC

• EN 50155, Railway applications - Electronic equipment used on rolling stock
• EN 50121-3-2, Railway applications – Electromagnetic compatibility, Part 3-2: Rolling stock – Apparatus
• EN 50121-4, Railway applications - Electromagnetic compatibility. Part 4: Emission and immunity of the signalling and telecommunications apparatus
• ETSI EN 301 489-1, Electromagnetic compatibility (EMC) and Radio spectrum Matters (ERM) for radio equipment and services - Part 1: Common technical requirements
• ETSI EN 301 489-17, Electromagnetic compatibility (EMC) and Radio spectrum Matters (ERM) for radio equipment - Part 17: Specific conditions for Broadband Data Transmission Systems
• ETSI EN 301 489-24, Electromagnetic compatibility (EMC) and Radio spectrum Matters (ERM) for radio equipment and services - Part 24: Specific conditions for IMT-2000 CDMA Direct Spread (UTRA) for Mobile and portable (UE) radio and ancillary equipment
• ETSI EN 301 489-52, Electromagnetic Compatibility (EMC) standard for radio equipment and services - Part 52: Specific conditions for Cellular Communication Mobile and portable (UE) radio and ancillary equipment

Climate

• EN 50155, class OT4 Railway applications - Electronic equipment used on rolling stock
• EN 50125-3, Railway applications – Environmental conditions for equipment, Part 3: Equipment for signalling and telecommunications

Mechanical (Shock and vibration)

• EN 61373, category 1, class A and B
• EN 50125-3, Outside the track

Insulation (Coordination and test)

• EN 50124-1, Railway applications – Insulation coordination
• EN 50155, Railway applications - Electronic equipment used on rolling stock

Radio communication

• ETSI EN 300 328, Wideband transmission systems; Data transmission equipment operating in the 2,4 GHz ISM band and using wide band modulation techniques
• ETSI EN 301 893, 5 GHz RLAN
• IEEE 802.11, Wireless LAN Medium Access Control (MAC) and Physical Layer (PHY) Specifications
• FCC-47-15, Radio frequency devices
• FCC-47-22, Public mobile services
• FCC-47-24, Personal communications services
• FCC-47-27, Miscellaneous wireless communications services

Safety

• EN 45545-2, Fire protection on railway vehicles

• Operating temperature: -40 to +70°C (-40 to +158°F)
• Ingress protection: IP66

• 283,858 hours (IEC 62380)

• Networking

Fixed fallback IP, IP aliases, MAC address control lists, VLAN support, Static/Policy/Multicast Routing, DHCP Server/Client/Relay, DNS Server/Client, Firewall L2/L3, Port forwarding, NAT, NTP Server/ Client, RSTP, OpenVPN, IPsec, Wireguard, GRE/GRETAP, VXLAN

• Cellular

Default/dedicated bearers, QCI, SIM rotation, Technology selection, Band restriction, Operator lock

• Monitoring

Built-in monitoring sensors and diagnostics, SNMP notifications (TRAP/INFO), Syslog, CLI

• Discovery: LLDP, SSDP, mDNS
• Management

SNMP v2c/v3 with USM authentication and encryption support, HTTP/HTTPS web interface and WebAPI with user authentication (local or LDAP), CLI (SSH and Telnet), Certificate Management (SCEP)

• SNMP MIB Support

MIB-2, RFC1213, HOST-RESOURCES, BRIDGE, ETHERLIKE, IF-MIB, LLDP-MIB, UCDSNMPMIB, WESTERMO-SW6-MIB, WESTERMO-SW6-BRIDGE-MIB, WESTERMO-SW6-FIREWALLMIB, WESTERMO-SW6-GNSS-MIB

Mobile interface

• 4x4 MIMO 5G, sub 6GHz, 3GPP Release 16 NSA/SA operation, LTE fallback DL Cat 19 / UL Cat18, UMTS WCDMA

Mobile frequency bands

• 5G NR SA: n1/n2/n3/n5/n7/n8/n12/n13/n14/n18/n20/n25/n26/n28/n29/n30/n38/n40/n41/n48/ n66/n70/n71/n75/n76/n77/n78/n79 5G NR NSA: n1/n2/n3/n5/n7/n8/n12/n13/n14/n18/n20/n25/n26/n28/n29/n30/n38/n40/n41/n48/ n66/n70/n71/n75/n76/n77/n78/n79 LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B12/B13/B14/B17/B18/B19/B20/B25/B26/B28/ B29/B30/B32/B66/B71 LTE-TDD: B34/B38/B39/B40/B41/B42/B43/B48 LAA: B46 (TDD) UMTS-WCDMA: B1/B2/B4/B5/B8/B19

Mobile data rates (maxa.)

• 5G SA: DL 2.4 Gbps; UL 900 Mbps
• 5G NSA: DL 3.3 Gbps; UL 600 Mbps
• LTE: DL 1.6 Gbps; UL 200 Mbps
• WCDMA: DL 42 Mbps; UL 5.76 Mbps

SIM cards

• 2 x Mini-SIM (2FF) card slots

WLAN operating modes

• Access Point, Client, Bridge, Inter-consist link

WLAN standards supported:

• IEEE802.11b, 802.11g, 802.11a, 802.11n

WLAN data rates supported

• 802.11b: 1 Mbit/s, 2, 5.5, and 11 Mbit/s
• 802.11g and 802.11a: 6 Mbit/s, 9, 12, 18, 24, 36, 48 and 54 Mbit/s
• 802.11n 20 MHz BW, LGI/SGI: from MCS0 6.5/7.2 Mbit/s to MCS15 130/144.4 Mbit/s
• 802.11n 40 MHz BW, LGI/SGI: from MCS0 13.5/15 Mbit/s to MCS15 270/300 Mbit/s

WLAN transmit power

• Max. conducted transmit power, 802.11b/g/n:

1 port: +22 dBm for all data rates

2 ports: +25 dBm for all data rates

WLAN Receiver sensitivity

• 802.11g: -95 dBm (6 Mbit/s), -85 (36Mbit/), -80 dBm (54 Mbit/s)
• 802.11a: -95 dBm (6 Mbit/s), -85 (36Mbit/), -80 dBm (54 Mbit/s)
• 802.11ng HT20: -95 dBm (MCS0), -76 dBm (MCS7), -73 dBm (MCS15)
• 802.11na HT20: -95 dBm (MCS0), -76 dBm (MCS7), -73 dBm (MCS15)
• 802.11ng HT40: -92 dBm (MCS0), -73 dBm (MCS7), -70 dBm (MCS15)
• 802.11na HT40: -92 dBm (MCS0), -73 dBm (MCS7), -70 dBm (MCS15)

GNSS receiver

• GPS L1 C/A, QZSS L1 C/A/S, GLONASS L10F BeiDou B1I, Galileo E1B/C
• SBAS L1 C/A: WAAS, EGNOS, MSAS, GAGAN

GNSS navigation update rate: 25Hz (up to 4 concurrent GNSS receiver)

GNSS horizontal accuracy: 1.5 m CEP (with SBAS) 2.0 m CEP (without SBAS)

GNSS protocols: NMEA 4.10/4.11, UBX

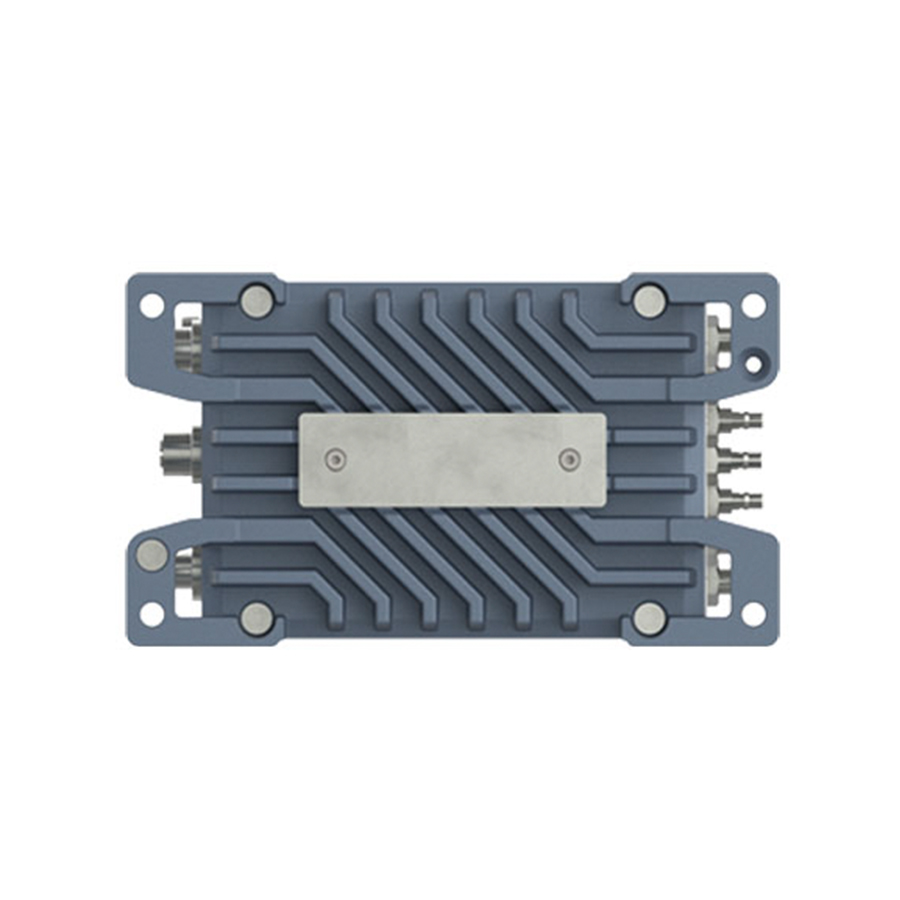

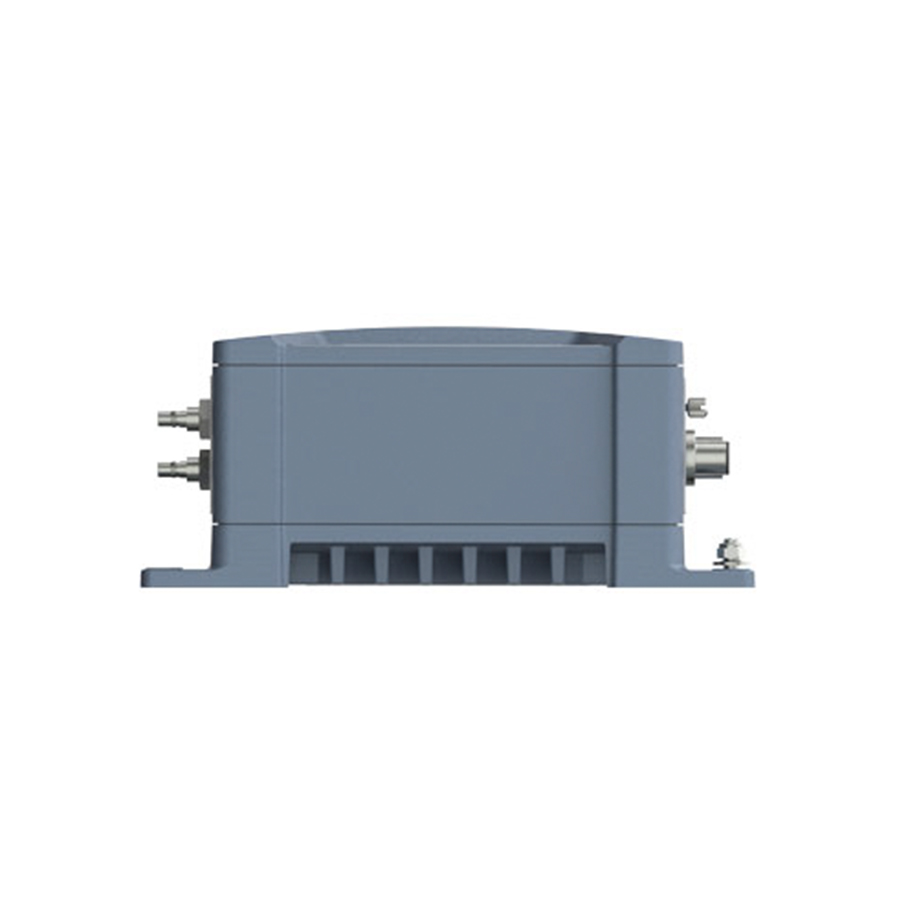

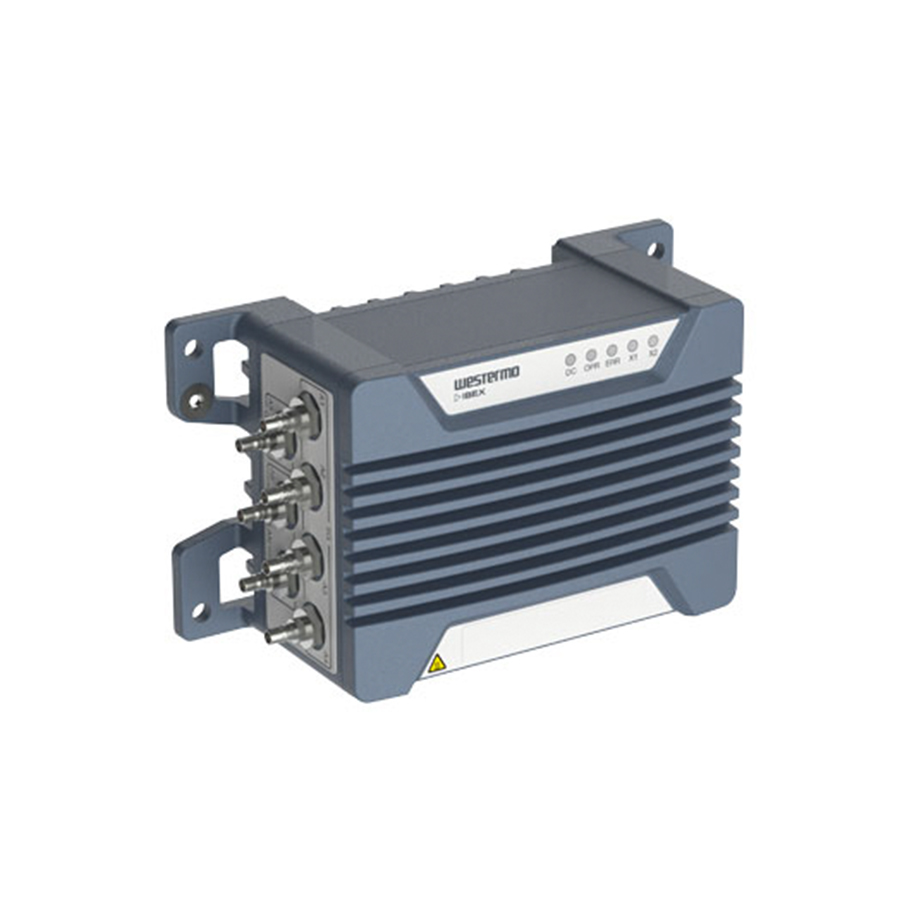

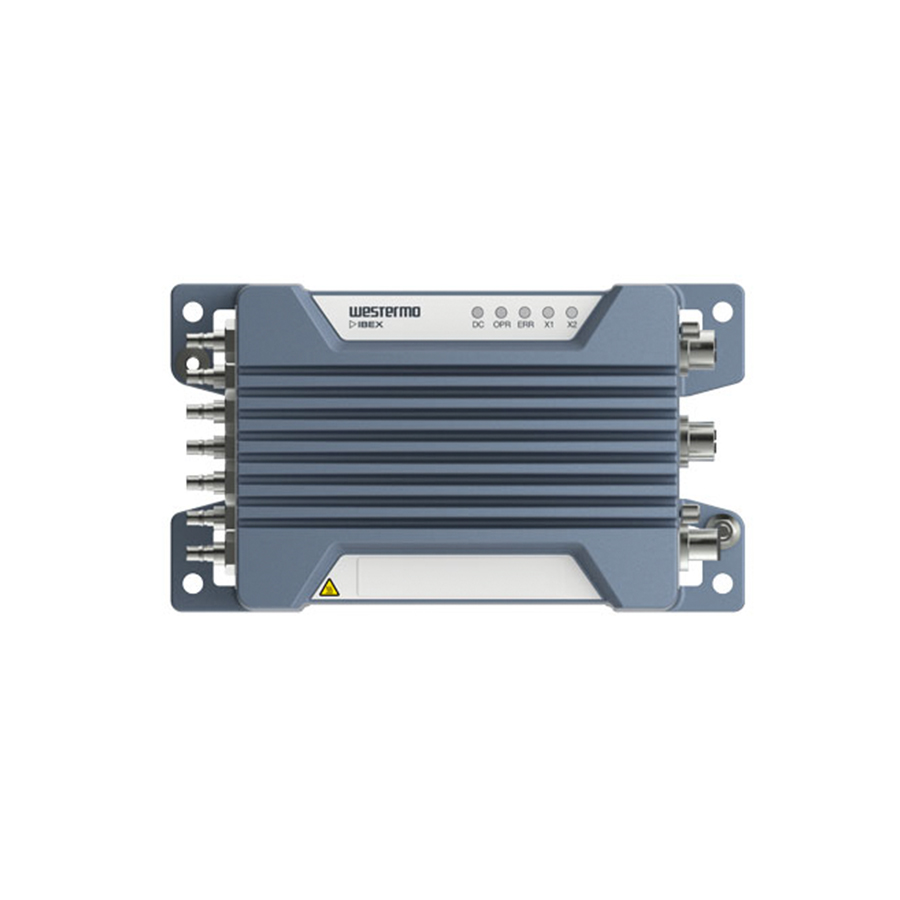

• Dimensions (W x H x D): 195.4 x 83 x 111.4 mm (7.69 x 3.27 x 4.39 inches)
• Housing: Full metal
• Weight: 1.54 kg without antennas
