• Climate

- EN 50155, class OT4 Railway applications

- Electronic equipment used on rolling stock

• EMC

- EN 50155, Railway applications

- Electronic equipment used on rolling stock

- EBA EMV 06, German Federal Railway Authority, Radio compatibility of rail vehicles (valid for LV models only)

- EN 50121-3-2, Railway applications – Electromagnetic compatibility, Part 3-2: Rolling stock – Apparatus

- ETSI EN 301 489-1, Electromagnetic compatibility (EMC) and Radio spectrum Matters (ERM) for radio equipment and services - Part 1: Common technical requirements

- ETSI EN 301 489-19, Electromagnetic Compatibility (EMC) standard for radio equipment and services - Part 19: Specific conditions for Receive Only Mobile Earth Stations (ROMES) operating in the 1,5 GHz band

- ETSI EN 301 489-24, Electromagnetic compatibility (EMC) and Radio spectrum Matters (ERM) for radio equipment and services - Part 24: Specific conditions for IMT-2000 CDMA Direct Spread (UTRA) for Mobile and portable (UE) radio and ancillary equipment

- ETSI EN 301 489-52, Electromagnetic Compatibility (EMC) standard for radio equipment and services - Part 52: Specific conditions for Cellular Communication Mobile and portable (UE) radio and ancillary equipment

- ECE E-Mark, Road Vehicles, E13 10R-06 15771 (valid for LV models only)

• Mechanical (Shock and vibration)

- EN 61373, category 1, class A and B

- IEC 60068-2-27, 100 m/s2 , 30 ms

- MIL STD 810G Method 516.7, 10 g, 11 ms

• Insulation (Coordination and test)

- EN 50124-1, Railway applications – Insulation coordination

- EN 50155, Railway applications - Electronic equipment used on rolling stock

• Radio communication

- ETSI EN 301 908-1, IMT cellular networks

- 3GPP LTE Advanced standard

- FCC-47-15, Radio frequency devices

- FCC-47-22, Public mobile services

- FCC-47-24, Personal communications services

- FCC-47-27, Miscellaneous wireless communications services

• Safety

- EN/IEC 62368-1, Safety Requirements for audio/video, information and communication technology equipment

- EN 45545-2, Fire protection on railway vehicles

- NFPA 130, Fire protection for fixed guideway transit and passenger rail system

• 360,000 hours (IEC 62380)

• Rated voltage

- LV: 24 VDC isolated, 0.6 A max. or IEEE 802.3 at type 1 powered device

- HV: 72 to 110 VDC isolated, 0.2 A max.

• Security: 802.1X
• Ethernet routing/networking and VPN: Fixed fallback IP, IP aliases, MAC address control lists, Port forwarding, Routing, Multicast Routing, DHCP Server/Client, NAT, VLAN support, NTP client, SNMP v2c and v3 with USM authentication and encryption support, SNMP Traps, RSTP, Firewall, IP Masquerading (NAT/NAPT), Port Forwarding, Stateless NAT (1-1 NAT), SSL VPN (Client and Server), Certificate Authentication, Pre-shared Key (PSK) Point-to-Point Mode, Layer-2 and Layer-3 VPN, Layer-2 VPN bridging, Address pool and address per CN, TLS Authentication), Generic Routing Encapsulation (GRE)
• Monitoring: Built-in monitoring sensors and diagnostics, SNMP Traps, Syslog Management SNMP v2c/v3 with USM authentication and encryption support, HTTP/HTTPS web interface and WebAPI with user authentication (local or LDAP), CLI (SSH and Telnet), Certificate Management (SCEP)
• SNMP MIB Support: MIB-2, RFC1213, HOST-RESOURCES, BRIDGE, ETHERLIKE, IF-MIB, LLDP-MIB, UCDSNMP-MIB, WESTERMO-SW6-MIB, WESTERMO-SW6-BRIDGE-MIB, WESTERMO-SW6-FIREWALLMIB, WESTERMO-SW6-ICL-MIB, WESTERMO-SW6-GNSS-MIB, WESTERMO-SW6-NWM-MIB, WESTERMO-SW6-PWN-MIB

• Mobile interface: 2x2 MIMO LTE-A Cat 12, 3GPP E-UTRA Release 12
• Mobile frequency bands LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B9/B12/B13/B14/B17/B18/B19/B20/B21/B26/B28/B29/B30/B32/B66 LTE-TDD: B38/39/B40/B41 WCDMA Band: B1/B2/B3/B4/B5/B8/B9/B19
• LTE-A carrier aggregation DL 2CA:

B1+3/5/18/19/20/26; B2+2/4/5/12/13/17/29/30/66; B3+3/5/7/8/19/20/28; B4+4/5/12/13/17/29/30; B5+7/30/66; B7+7/20/28; B12+30; B13+66; B19+21; B20+B32; B29+30; B38+38; B39+39; B39+39; B39+41 B40+40; B41+41; B66+66;12,29,30,5; B2+B14;B14+B30;B14+B66; (Note: B29, B32 only for secondary component carrier)

DL inter-band 3CA: B1+3+5/7/8/19/20/28; B1+7+20, B2+4+5,B2+4+13, B2+5+30, B2+12+30, B2+29+30, B3+7+20, B3+7+28 , B3+7+8, B4+5+30, B4+12+30, B4+29+30, B5+66+2, B13+66+2, B66+12+30, B66+29+30, B66+5+30; B2+B14+B66

DL 2 intra-band plus inter-band 3CA: B2+2+5, B2+2+13, B3+3+7, B3+7+7, B3+3+20, B3+3+28,B3+3+1, B4+4+5, B4+4+13, B7+7+28, B5+66+66, B13+66+66, B66+66+2, B39+B39+B41; B39+B41+B41; B14+B66+B66

DL 3 intra-band 3CA: B40+40+40, B41+41+41, B66+66+66 UL Intra-band Continuous 2×CA: B3+3; B7+7; B38+38; B40+40; B41+41

• Mobile data rates LTE-FDD: Max 600 Mbps (DL)/Max 150 Mbps (UL) – DL 256QAM / UL 64QAM; LTE-TDD: Max 430 Mbps (DL), Max 30 Mbps (UL); DC-HSDPA: Max 42 Mbps (DL); HSUPA: Max 5.76 Mbps (UL); WCDMA: Max 384 Kbps (DL), Max 384 Kbps (UL)
• GNSS receiver: GPS L1C/A, SBAS L1C/A, QZSS L1C/A, QZSS L1 SAIF, GLONASS L1OF, BeiDou B1I, Galileo E1B/C, D-GPS

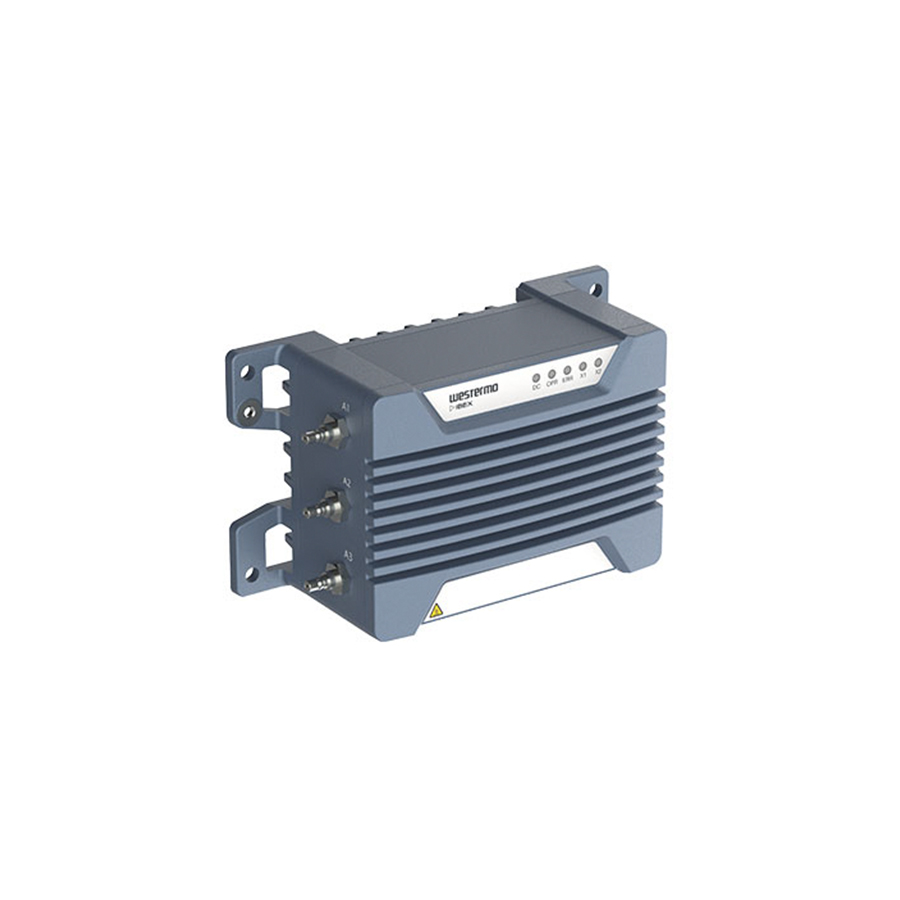

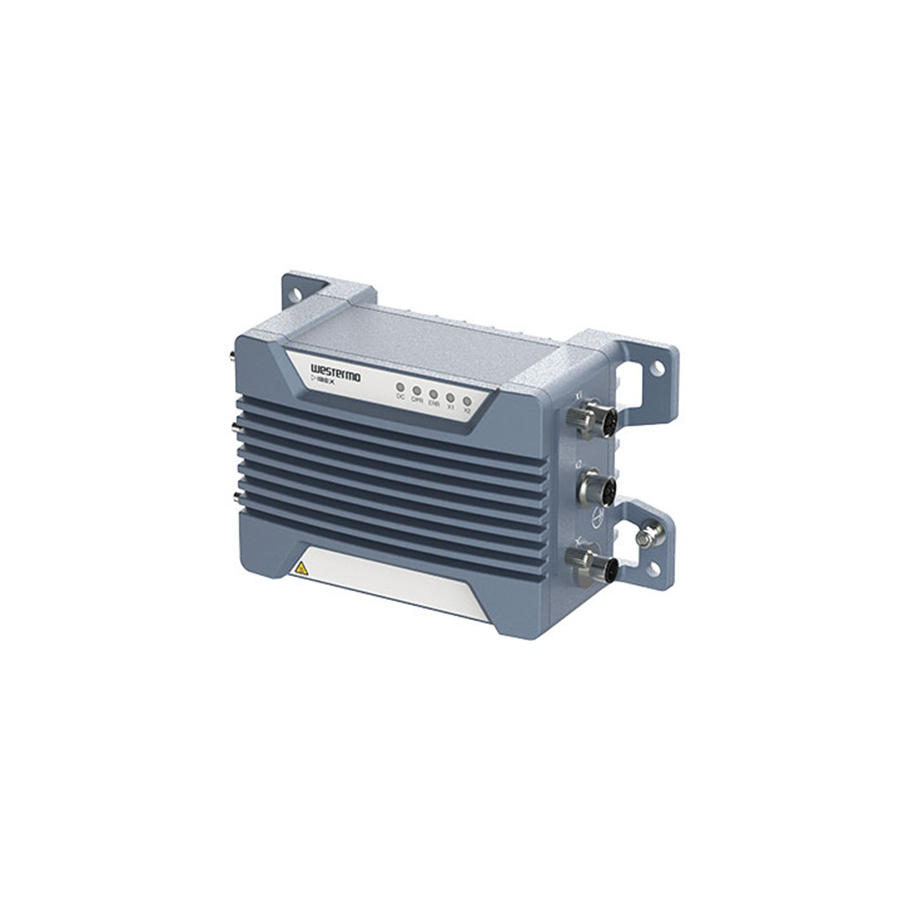

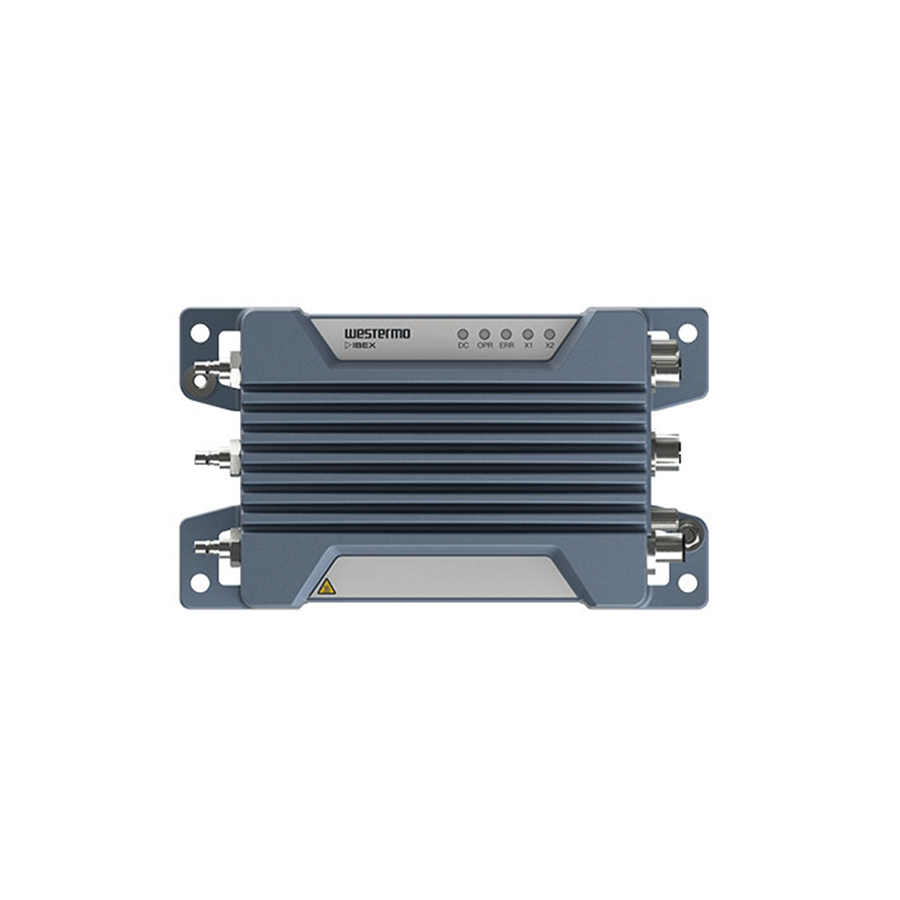

• 3623-0740: Ibex-RT-330-LV
• 3623-0741: Ibex-RT-330-HV
• 3623-0799: Factory Reset Plug X-code (Accessory)

• Dimensions (W x H x D): 195.4 x 83 x 111.4 mm (7.69 x 3.27 x 4.39 inches)
• Housing: Full metal
• Weight: 1.54 kg without antennas
